Replacing Early 944 Automatic Transmission Lines Front

This was easy, especially since I replaced the fuel lines which was a pain in the a$$. I had seepage in the lines so I decided to go ahead and replace them since I had the car in the air.

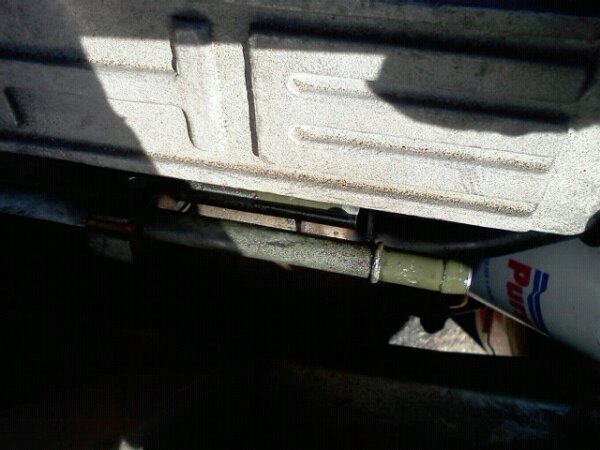

1. Using a 19mm wrench, unscrew lines from radiator. You can unscrew the top bolt from the top and the bottom one from under the car. Have a rag or bucket for the transmission fluid that’s going to leak. Be sure not to damage washers. Replace if needed.

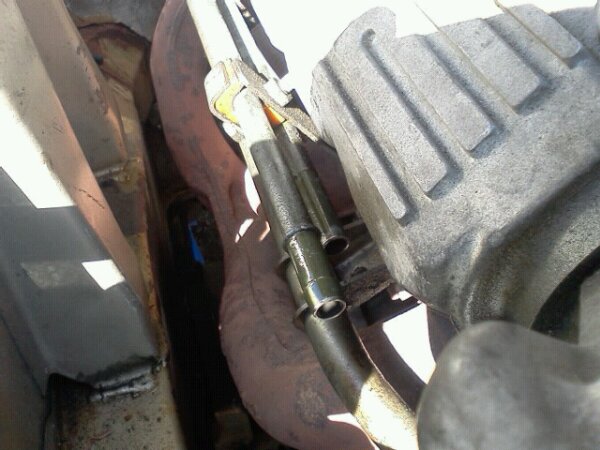

2. Pry the clamps of the hoses near the motor side. I used a hammer and a precision flat head screwdriver.
3. Using a razor, disconnect the metal fittings from old hose.

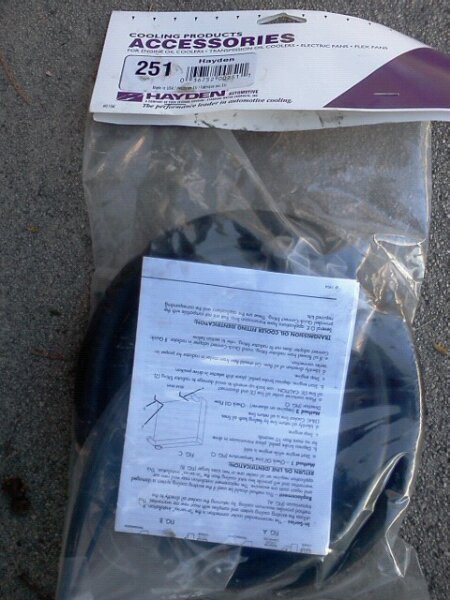

4. I used Hayden Cooling Transmission hose cooling kit from Pep Boys. Pic Below.

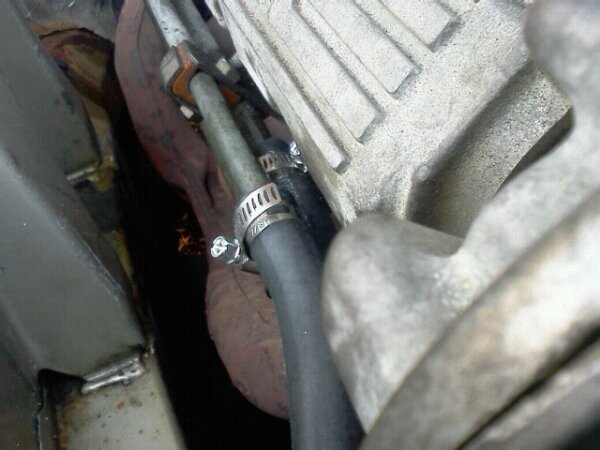

5. Clamp on the new hose to fittings
6. Screw fittings back into the radiator.
7. Clamp back on to the motor.
8. Turn car on and check transmission fluid.
